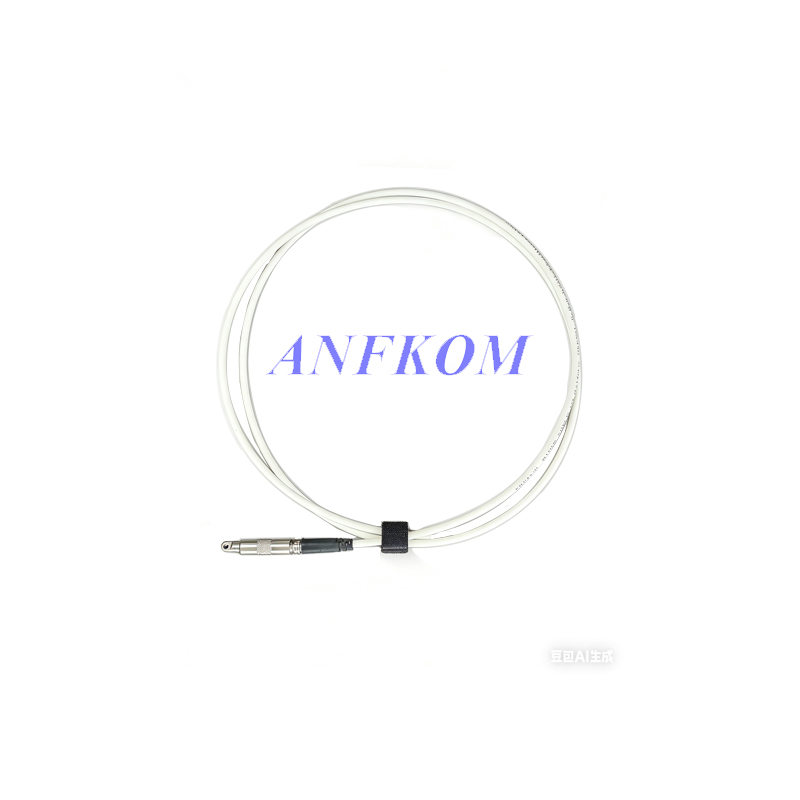

Armored fiber optic patch cord is made of armored fiber optic cable and connectors.
Armored cables have stainless steel tube inside so as to protect itself in harsh environment.
Comparing to standard patch cord, Armoured fiber optic patch cord offers ruggedness and superior crush resistance. It will work well even a strong man steps on it. Also, it is anti-rodents, no need to worry about rodent animals may bite the cable, and make the network down. Armored fiber optic patch cord is not only strong but also flexible. It is a perfect choice for mobile applications like concerts, shows, sports event, etc.
Armored fiber optic patch cord can be with many kinds of connectors, like SC, LC, ST, FC, MU. Sometimes it will work with special connectors like ODVA, PDLC in outdoor application.
Applications
Pigtails and Patch cord
Ideal for use in optical device,equipment
Ideal for use in optical distribution frame
Features
Good mechanical property and environment property
Flame resistant performance
Soft,agility,convenience for connection
Satisfy various request of markets and customers
Specification
Item | Units | Single Mode | Multimode | |
Core/ModeDiameter | μm | 9.2±0.4μm@1310nm10.4±0.8μm@1550nm | 50±2.5μm | 62.5±2.5μm |
Cladding Diameter | μm | 125±1μm | 125±1μm | 125±1μm |
Max. Attenuation | dB/km | 0.4dB/km@1310nm0.3dB/km@1550nm | 3.5dB/km@850nm1.5dB/km@1300nm | 3.5dB/km@850nm1.5dB/km@1300nm |
Operating temperature | ℃ | -40℃~+85℃ | ||
Outer diameter | mm | (2.85±0.15mm) * 2/5.7±0.10mm(duplex)/3.2±0.10mm(round) | ||
Net weight | kg/km | 38/20 | ||
Allowable bending radius | (mm) | 25 | ||
Allowable tensile | (N) | 200 | ||
Crush resistant | N/100mm | 3000 |
